Application

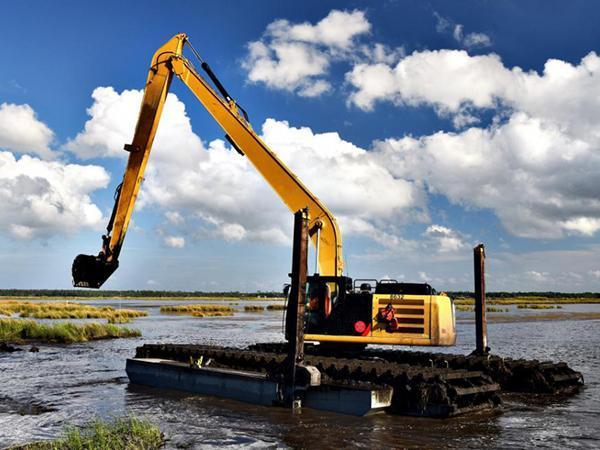

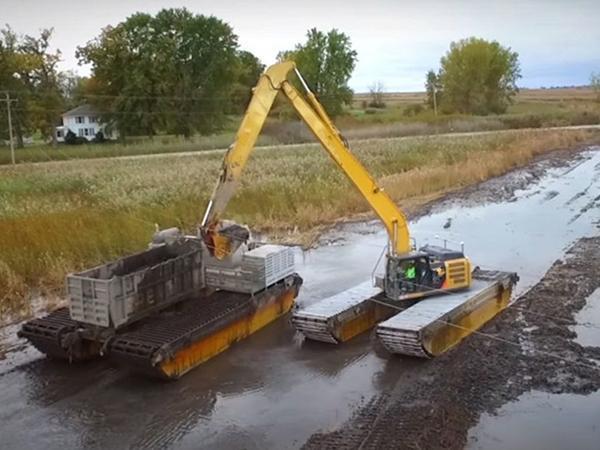

Amphibious Excavator is a kind of multifunctional excavator suitable for land, marshy soft ground and shallow water operation. The excavator is a special engineering equipment specially designed for excavation and dredging in wetlands, mudflats, silting channels and other areas where engineering vessel and conventional engineering machinery can not enter and carry out construction. The amphibious excavator is widely applied to river and lake dredging of water conservancy project and town and country construction and resource development and environmental improvement of wetland swamp and mudflat.
Model | DGAME15 | DGAME20 | DGAME26 | DGAME30 |
Working Weight | 15000 kg | 20000 kg | 26000 kg | 30000 kg |
Standard Bucket Capacity | 0.25 m3 | 0.4 m3 | 0.9 m3 | 1.0 m3 |
Engine Power | 56.5 kw | 89.3 kw | 114 kw | 135 kw |
Traveling Speed | 3.8 km/h | 3.1 km/h | 3.2 km/h | 3.2 km/h |
Rotation Speed | 11 rpm | 11 rpm | 11 rpm | 11 rpm |
Maximum Gradeability | 30 o | 30 o | 30 o | 30 o |
Standard Digging Depth | 6870 mm | 7360 mm | 8700 mm | 9360 mm |
Standard Digging Radius | 9990 mm | 10810 mm | 11920 mm | 12810 mm |
Amphibious Pontoon Dimension | 7170 x 1400 x 1420 mm | 8560 x 1490 x 1500 mm | 9450 x 1490 x 1700 mm | 11050 x 1600 x 1750 mm |
Chain Quantity | 2 pcs | 2 pcs | 3 pcs | 3 pcs |
Min Ground Clearance | 734 mm | 890 mm | 1090 mm | 1120 mm |
Note: Since our equipment is continuous improved, we reserve the right to modify model, parameter and specifications without prior notice.
Feature

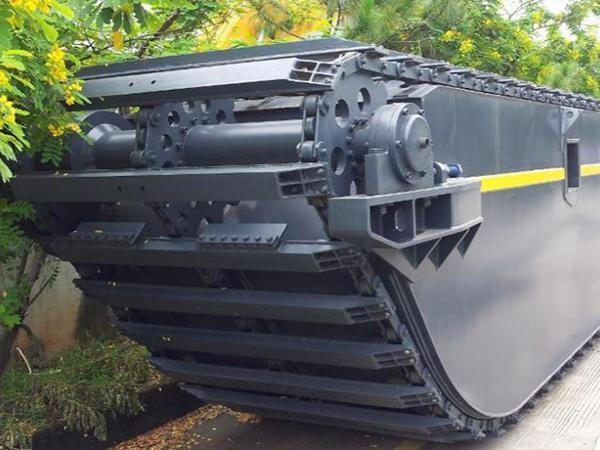

1. Our amphibious excavator adopts special reinforced track shoe and buoyancy tank, which can ensure normal operation in severe conditions.

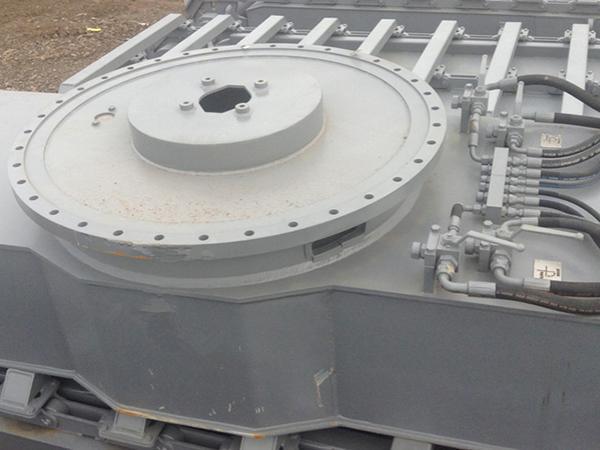

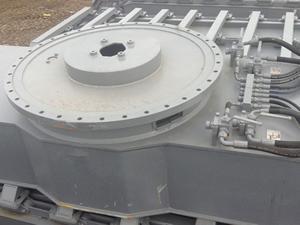

2. The excavator and buoyancy tank is equipped with a replaceable joint assembly and therefore the dredger can be equipped with different type of excavators.

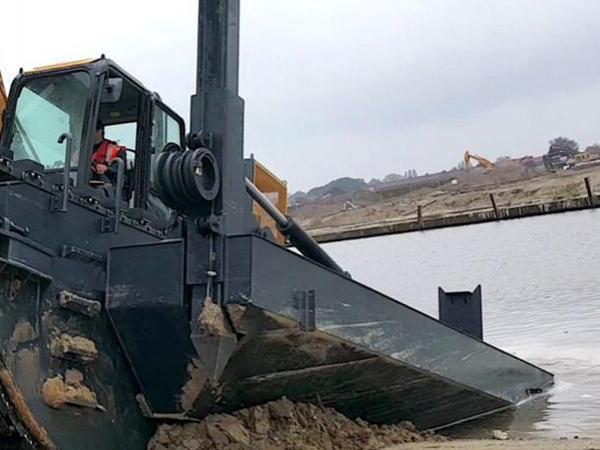

3. We can help customers to install spud on the track buoyancy tank to increase stability at working.

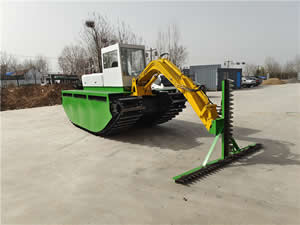

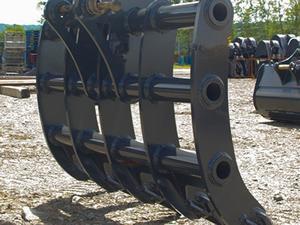

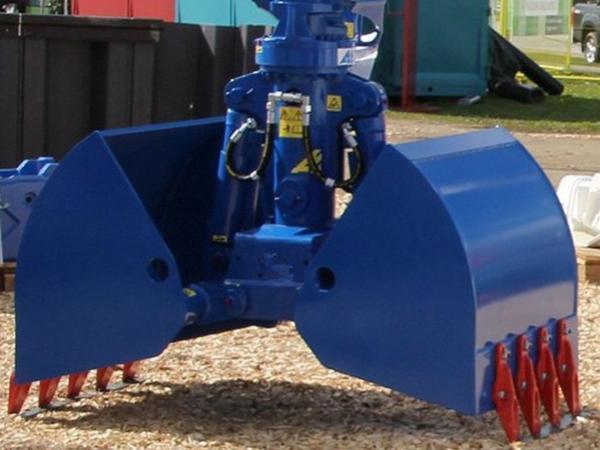

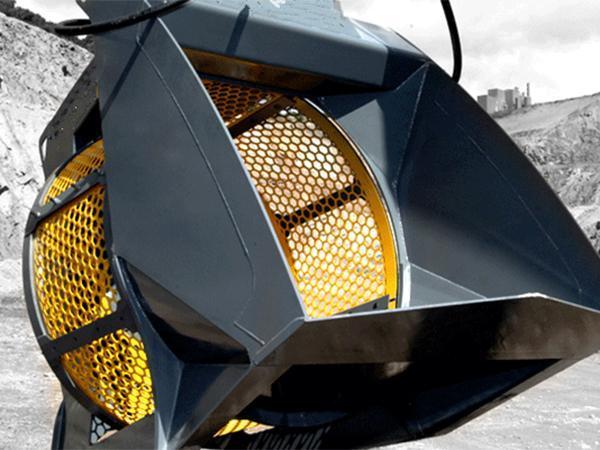

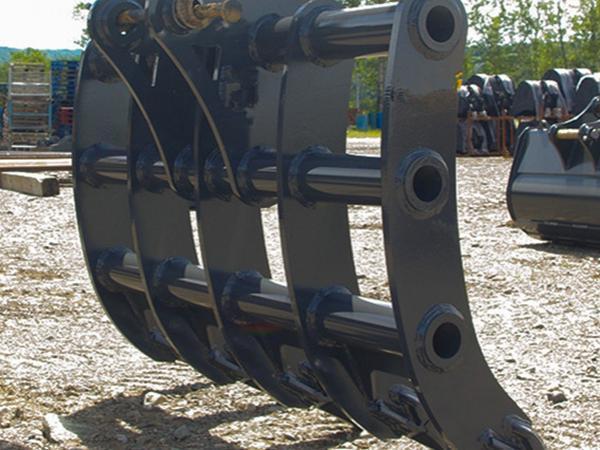

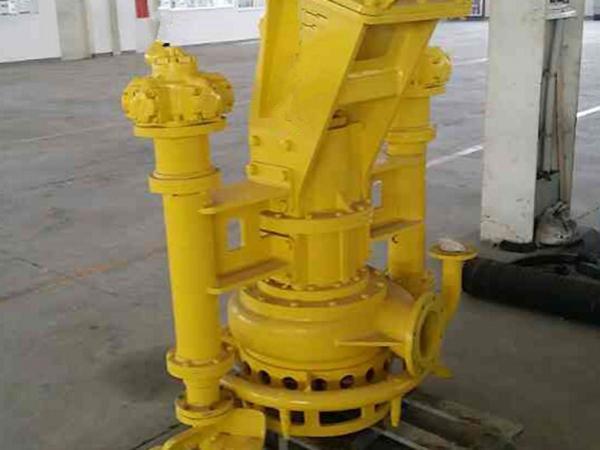

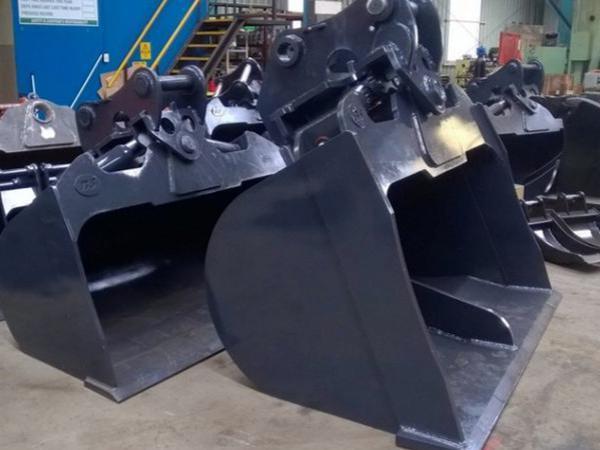

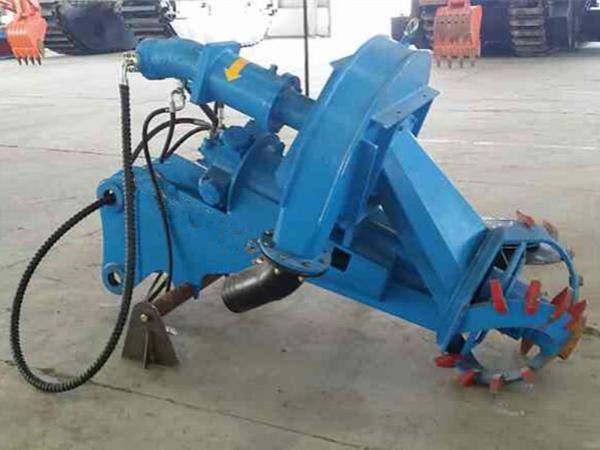

4. The amphibious excavator can be equipped with different working unit to meet different working demands.
Our company is offering amphibious excavator to remove sand and mud in river, lake, pond, canal, etc. We have plenty production equipment to make good quality water cleaning and dredging equipment to meet customer demands.
