Application

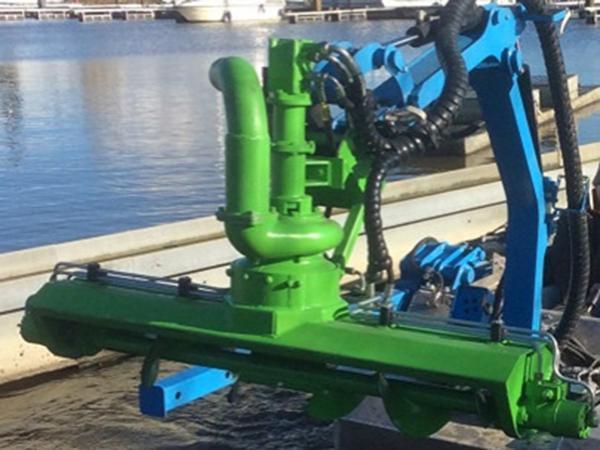

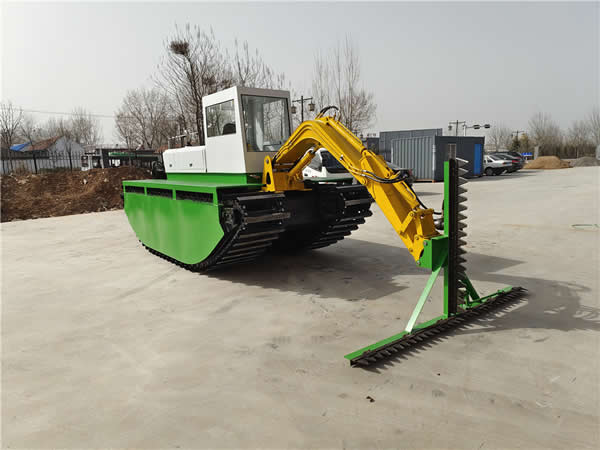

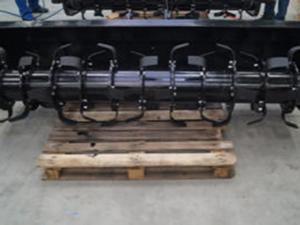

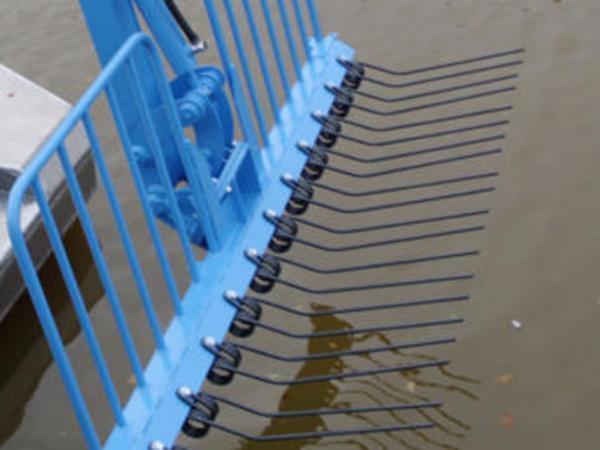

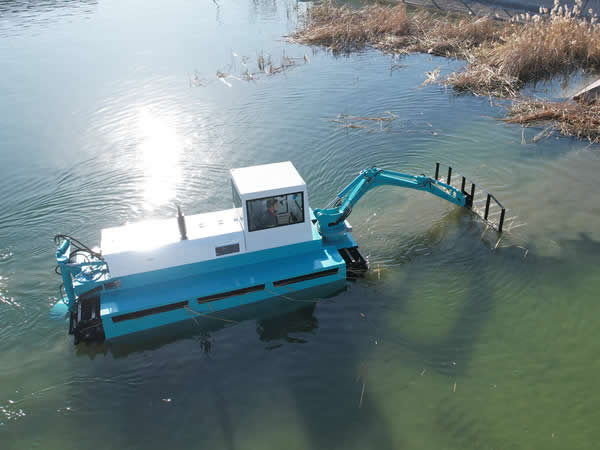

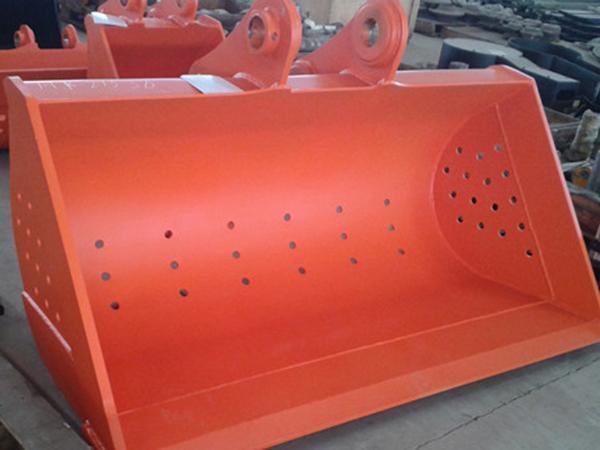

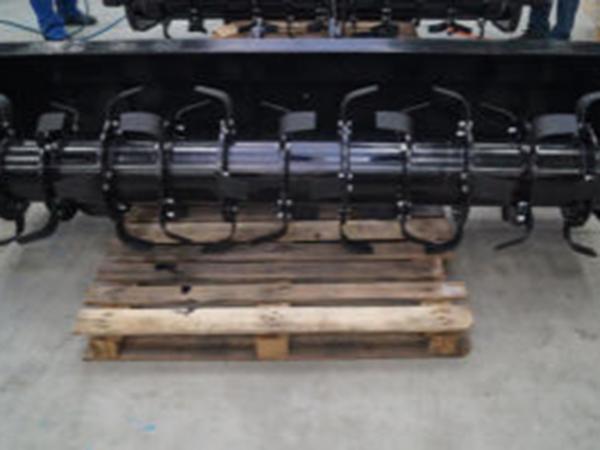

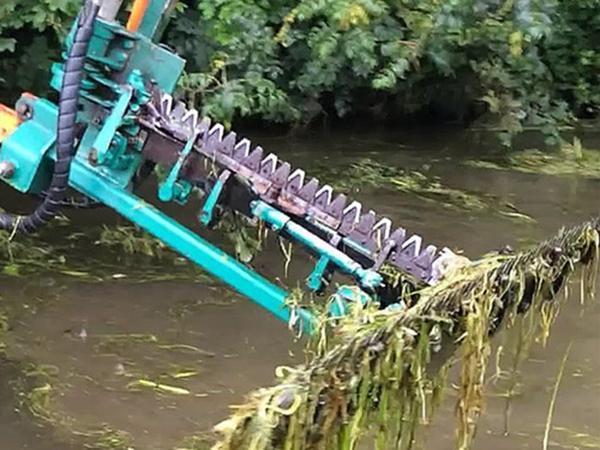

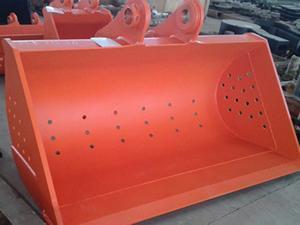

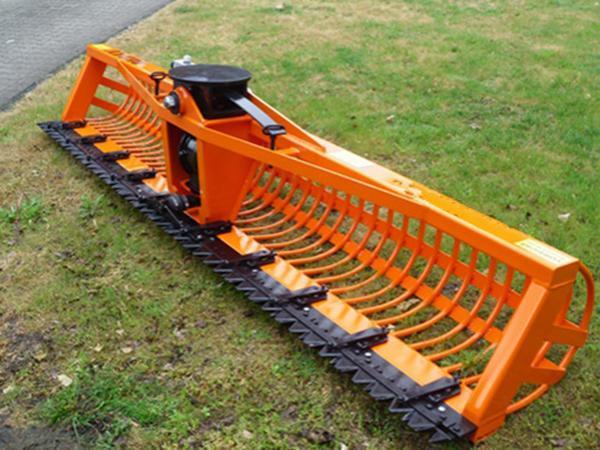

Water cleaning amphibious vehicle is kind of amphibious equipment suitable for narrow water areas and also can work in land. Besides, the amphibious vehicle has wheel type and crawler-type to choose and can also be equipped with dredge pump, cutting knife, scraper pan, collecting rake, fork, spiral cutting head and other more than ten kinds of working components, which is especially suitable for water cleaning in river, canal and other narrow areas.
Model | Boat dimension (LxWxH)(m) | Boat material | Dead load (t) | Power (kw) | Draft (m) | Length of hydraulic arm (m) | Max. working depth (m) | Rotation angle of hydraulic arm (°) | Lifting weight of hydraulic arm (kg) | Voltage (v) | Sailing way in land | propulsion type in river | |
4.8 x 2.2 x 1.5 | marine steel | 3.1 | 65 | About 0.9 | 2.5 | 1.3 | 270 | maximum radius: 380 | Minimum radius: 560 | 24 | 6 wheels | Hydraulic propeller | |
4.8 x 2.2 x 1.5 | marine steel | 3.3 | 65 | About 0.9 | 2.5 | 1.3 | 270 | maximum radius: 380 | Minimum radius: 560 | 24 | 2 chain belts | Hydraulic propeller |
Note: Since our equipment is continuous improved, we reserve the right to modify model, parameter and specifications without prior notice.
Feature

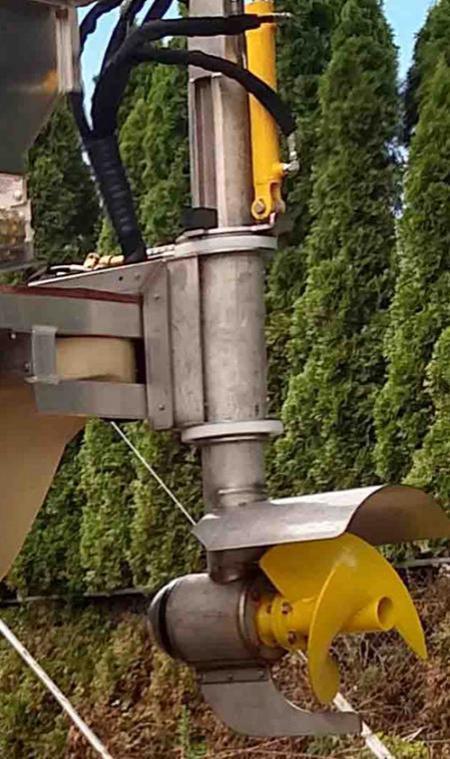

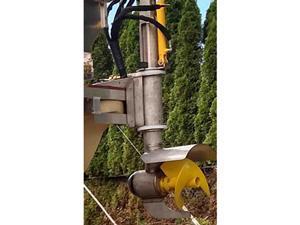

1. The rear end hydraulic propeller has forward and backward functions and also can also rotate with 180 degree in right and left directions. In shallow water and shore, the propeller can be lifted with the help of hydraulic cylinder.
2. The amphibious cleaning boat can be equipped with different working unit to meet different requirement of working.

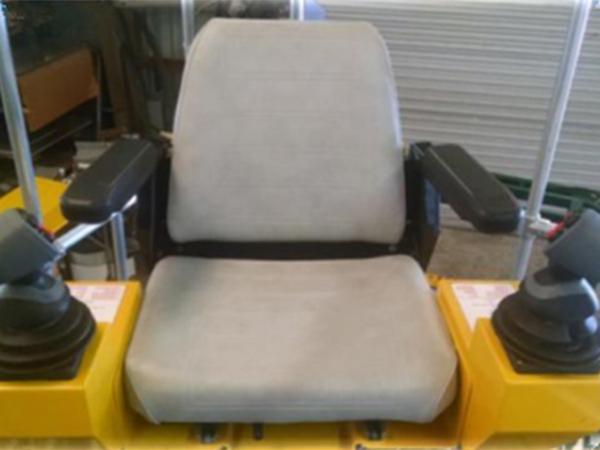

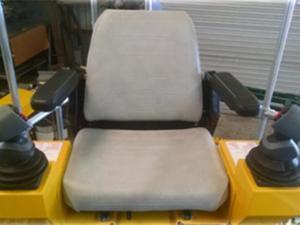

3. The cleaning boat is equipped with operation chair and operation handle aiming to realizing comfortable and convenient operation.
Our company is offering water cleaning amphibious vehicle and other water cleaner equipment for cleaning lake, pond and river water, we have plenty production equipment to make good quality water cleaning boat and equipment with qualified service to meet customer satisfaction.
