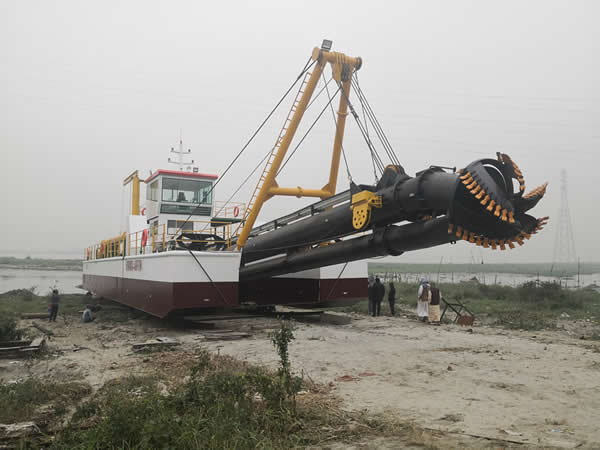

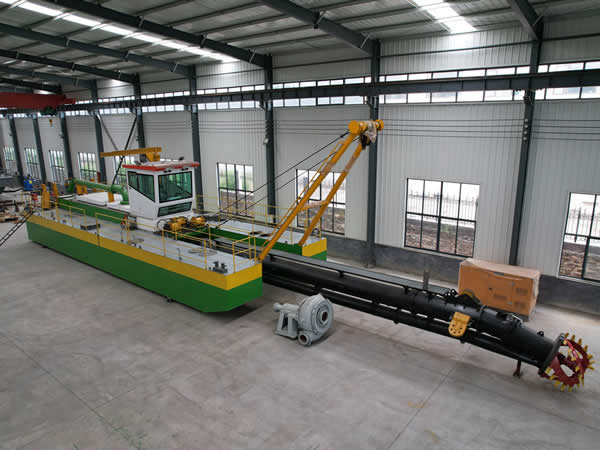

Cutter Suction Dredger

  • Cutter Suction Dredger
  • Cutter Suction Dredger

Application
The cutter suction dredger is suitable for all kinds of soil and is featured as high working efficiency, sturdy structure, good economic performance, low operation cost and reliable operation in any conditions, which is widely applied to ore sand digging, port and river dredging and reclamation project.

Technical parameter
Model Total dimension Max. production Maximum digging depth Max. discharge distance Installed power Diameter of discharge pipeline Diameter of cutting head Power of cutting head Tension of ladder winch Tension of swing winch Operation model Max. fuel consumption Weight
DGCSD200 22 x 5.0 x 1.5m 600 m3/hr 8 m 500 m 200 kw 200 mm 800 mm 30 kw 30 kn 30 kn Full hydraulic control. PLC control 35-40 L/h 35 t
DGCSD250 25 x 5.2 x 1.6m 900 m3/hr 10 m 800 m 336 kw 250 mm 1100 mm 43kw 40 kn 40 kn Full hydraulic control. PLC control 60-70 L/h 50 t
DGCSD300 27 x 5.4 x 1.6m 1300 m3/hr 12 m 1000 m 559 kw 300 mm 1100 mm 60 kw 50 kn 50 kn Full hydraulic control. PLC control 90-100 L/h 62 t
DGCSD400 32 x 6.4 x 1.8m 2100 m3/hr 15 m 1500 m 895 kw 400 mm 1400 mm 98 kw m 80 kn 60 kn Full hydraulic control. PLC control 155-170 L/h 98 t
DGCSD500 39 x 7.8 x 2.2m 3500 m3/hr 16 m 2000 m 1231 kw 500 mm 1700 mm 165 kw 100 kn 80 kn Full hydraulic control. PLC control 210-230 L/h 153 t
DGCSD600 44 x 8.8 x 2.4m 5000 m3/hr 18 m 3000 m 2446 kw 600 mm 2400 mm 220 kw 160 kn 120 kn Full hydraulic control. PLC control 400-430 L/h 220 t

Note: Since our equipment is continuous improved, we reserve the right to modify model, parameter and specifications without prior notice.

Feature

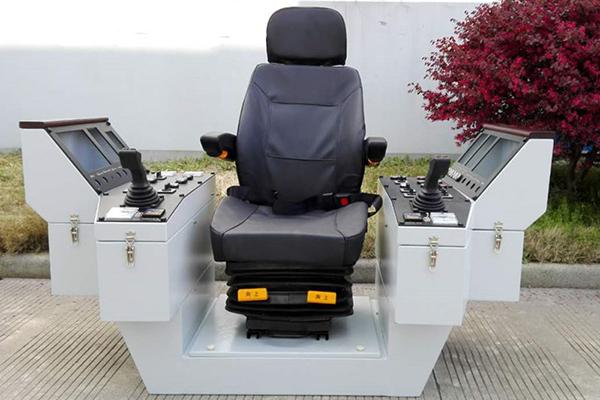

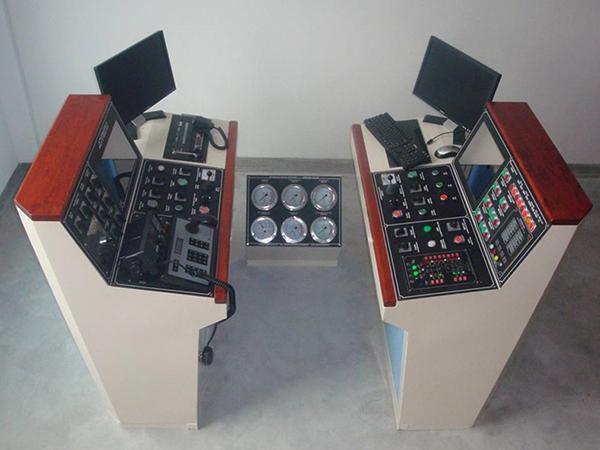

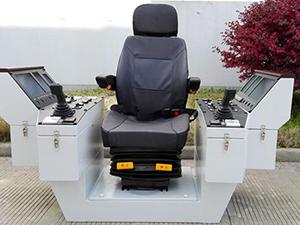

1. Customers can choose split type operation platform or integrated operation chair according to your own preference.

  • Cutter Suction Dredger
  • Cutter Suction Dredger

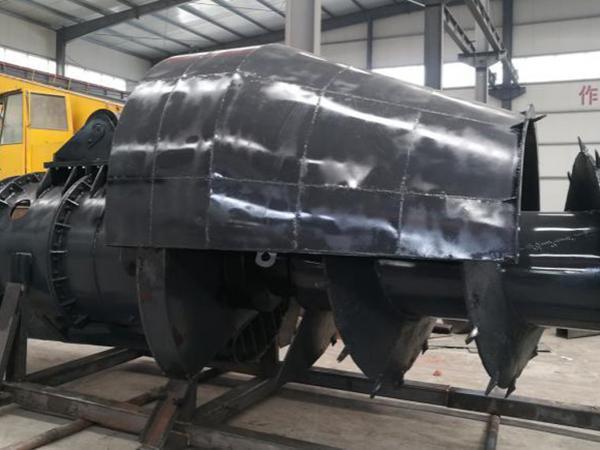

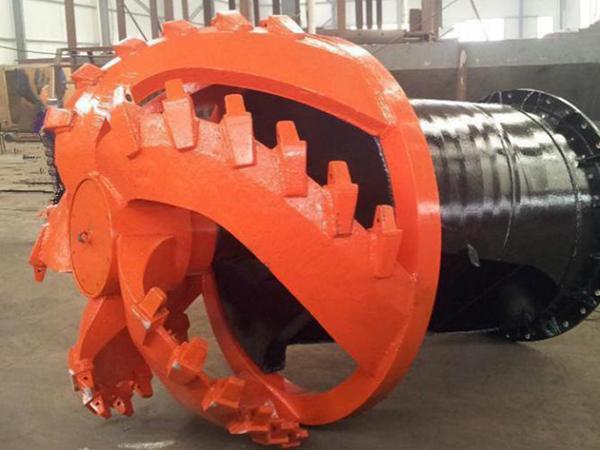

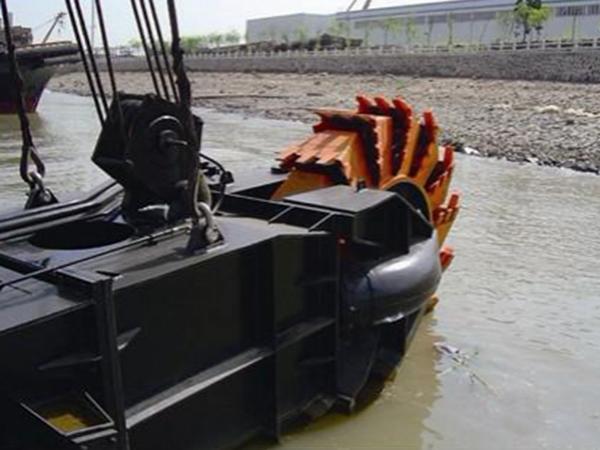

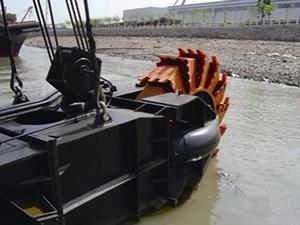

2. Based on the soil conditions, you can choose different cutting head including of crown cutter head, bucket wheel cutter head, screw cutter head.

  • Cutter Suction Dredger
  • Cutter Suction Dredger
  • Cutter Suction Dredger

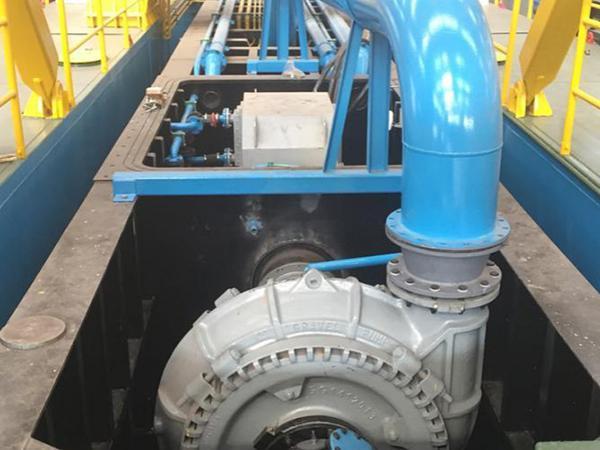

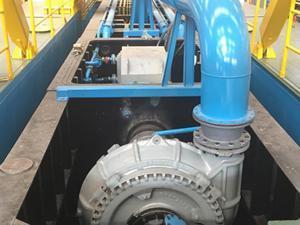

3. We adopt designing mode of submersible pump aiming to increasing working depth.

  • Cutter Suction Dredger

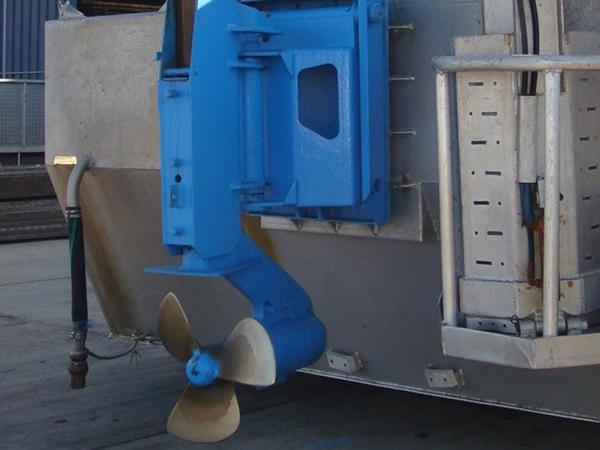

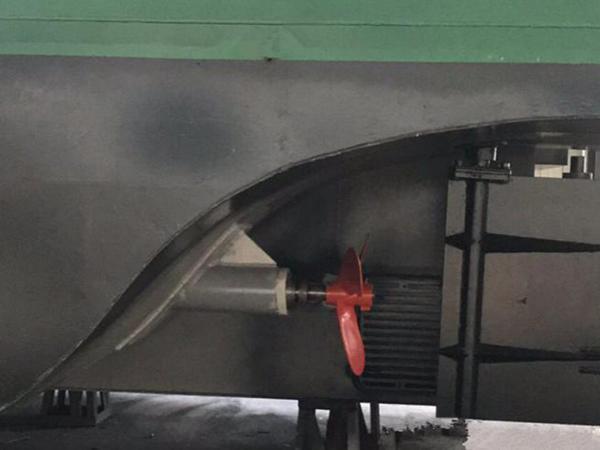

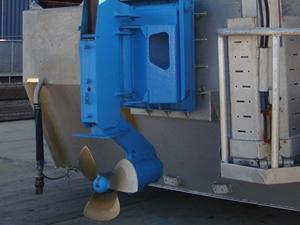

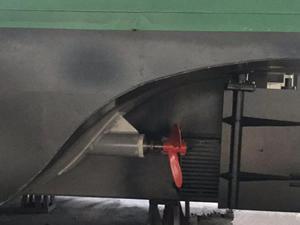

4. The cutter suction dredger can be equipped with horizontal or vertical propeller ensuring the automatic sailing capacity of boat.

  • Cutter Suction Dredger
  • Cutter Suction Dredger

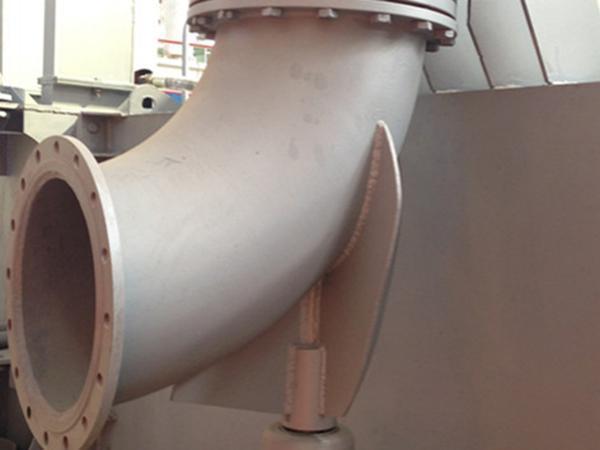

5. The rear end of the dredger is equipped with rotating joint connected with discharging pipeline, which can protect discharging pipeline in the horizontal moving in the left and right direction.

  • Cutter Suction Dredger

Our company is offering cutter suction dredger and water dredging equipment to remove sand and mud in river, lake, pond, canal, etc. We have plenty production equipment to make good quality cutter suction dredger and water cleaning equipment to meet customer demands.
