Application

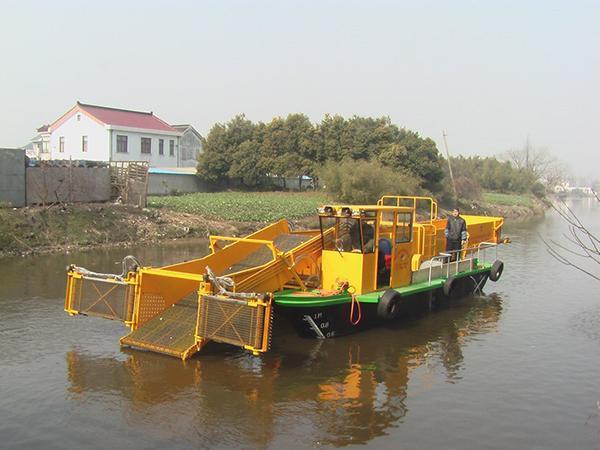

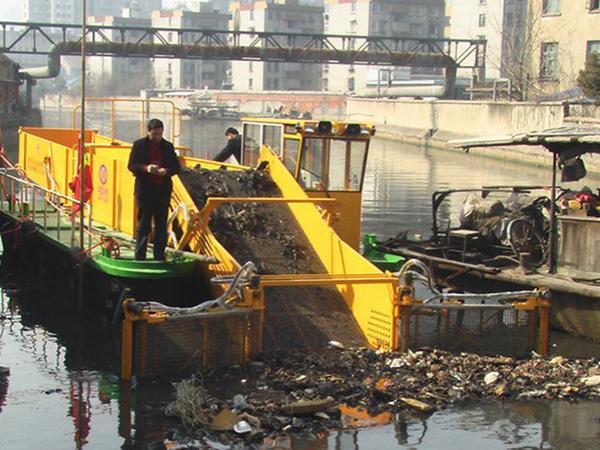

Water trash salvage boat is a kind of water cleaning boat, which is widely applied to the cleanness and salvage of water trash, branch and leaves and rot aqua weed for main canals, lakes, rivers, canals, man-made landscapes and so on. Besides, the trash salvage boat is also used for aqua weed cleaning and trash cleaning, which is featured as simply hull structure, long service life, environmental friendly and energy saving and high working efficiency. The boat is suitable for watercourses, parks, power stations, tourist attractions and other shallow water areas, which is not only used to remove floating trash and also can remove underwater weed to realize complete cleaning and environmental effect. The water trash cleaning equipment is the best choice of large area water cleaning of inland river.
Model | Dimension (LxWxH)(m) | Dead weight(t) | Power (kw) | Harvesting width(m) | Harvesting depth (m) | Loading capacity (t) | Dumping height(m) | Voltage (v) | Max. fuel consumption(L/h) | Propulsion mode | Max. sailing speed(km/h) |
10.0 x 3.2 x 3.0 | 5.4 | 37 | 1.8 | 0.6 | 1.5 | 2.0 | 24 | 5-7 | Paddle Wheel / Propeller | 5 | |
11.1 x 3.8 x 3.0 | 7.5 | 55 | 2.0 | 0.8 | 2.0 | 2.5 | 24 | 8-10 | Paddle Wheel / Propeller | 5 | |
12.6 x 3.8 x 2.7 | 11.2 | 75 | 3.0 | 1.0 | 2.5 | 2.8 | 24 | 10-13 | Paddle Wheel / Propeller | 7 | |
13.8 x 4.0 x 3.7 | 14 | 90 | 3.5 | 1.2 | 3.5 | 2.8 | 24 | 13-15 | Paddle Wheel / Propeller | 8 | |
17.5 x 5.4 x 4.1 | 17 | 110 | 4.8 | 1.5 | 5 | 3.0 | 24 | 18-20 | Paddle Wheel / Propeller | 8 |
Note: Since our equipment is continuous improved, we reserve the right to modify model, parameter and specifications without prior notice.
Feature

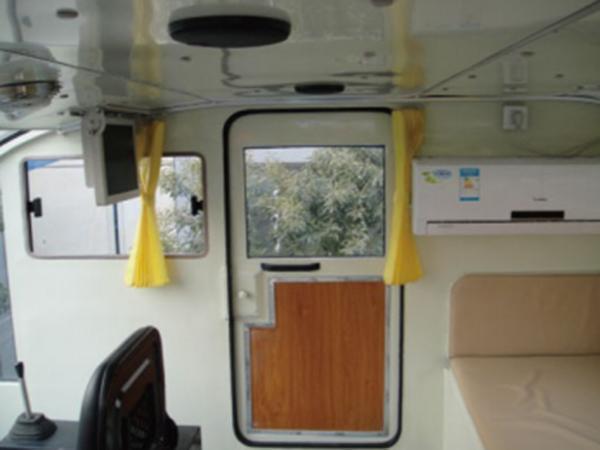

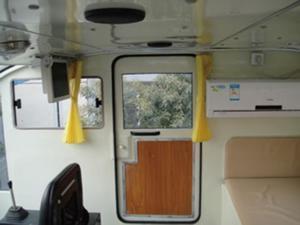

1. Operating room can be equipped with air conditioning, TV, sofa and monitoring equipment and so on.

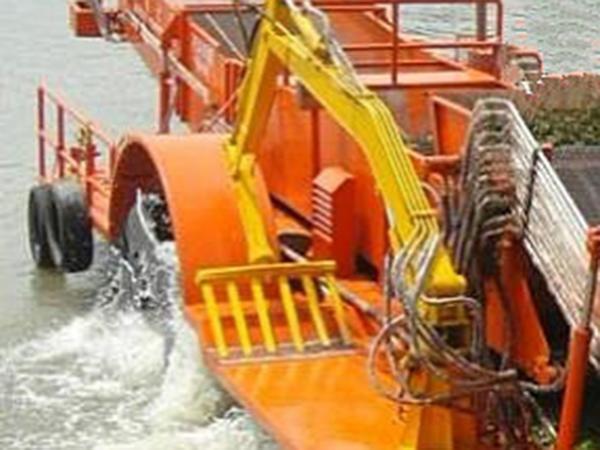

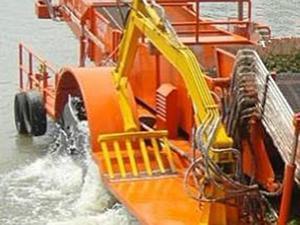

2. The right front of trash cleaning boat is equipped with a mechanical arm, which can be used to clean water trash in the corner.

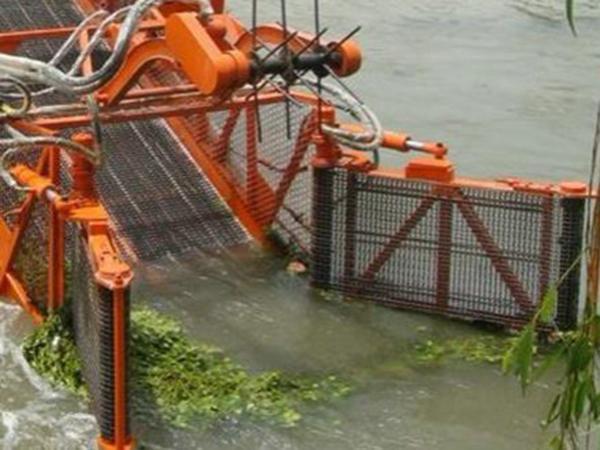

3. The front of boat is installed with collecting arm and collecting wheel. The collecting arm can increase working width and collecting wheel can prevent floating water trash from drifting away.

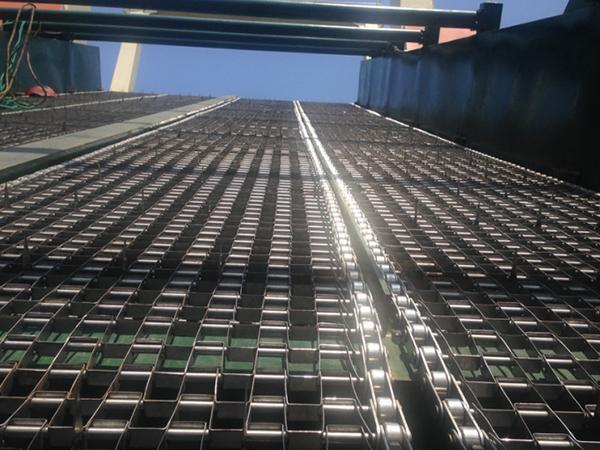

4. The stainless steel collecting chain belt is equipped with barb aiming to increasing collecting capacity for floating trash.

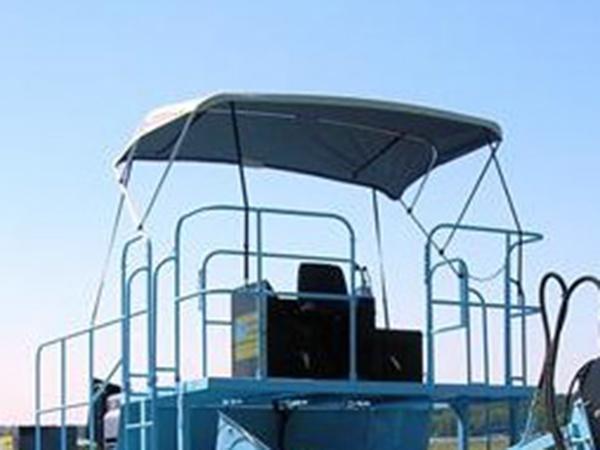

5. The aqua weed harvesting boat driving cab is designed with dismountable sunshades structure, which can be dismounted to lower height in low bridges.
Our company is offering water trash salvage boat and other water cleaner equipment for cleaning lake, pond and river water, we have plenty production equipment to make good quality water cleaning boat and equipment with qualified service to meet customer satisfaction.
