Application

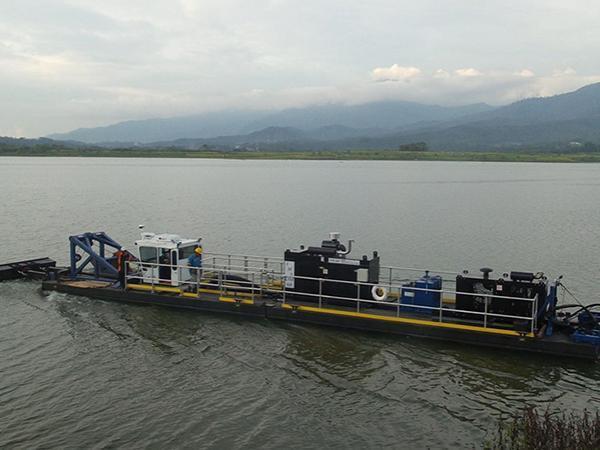

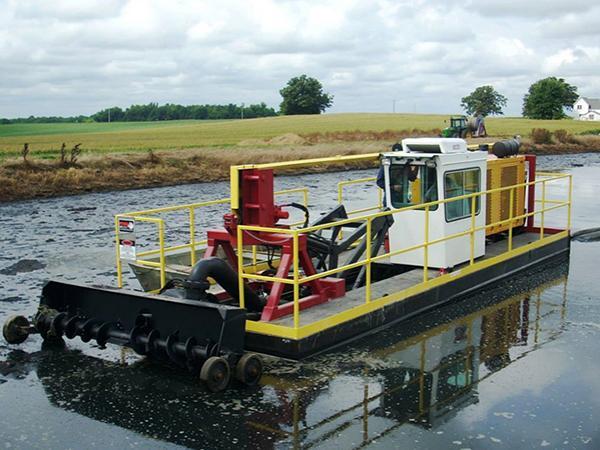

The auger suction dredger is specially designed for small construction environment needed reliable and multifunctional dredging system, which is especially suitable for cleaning sediment of factories and mining tailings pond, agricultural reservoir, rain pond and so on. Besides, the side of spiral cutter head is equipped with supporting wheel and can protect the bottom of the water area from being destroyed, which is especially important for artificial pond.
Model | Total dimension (LxWxH)(m) | Max. working capacity (m3/h) | Maximum digging depth (m) | Max. discharge distance (m) | Installed power (kw) | Diameter of discharge pipeline (mm) | Length of auger head (mm) | tension traction winch (kN) | Propulsion mode | Weight (t) |
9.5 x 3.0 x 2.8 | 30 | 5.4 | 100 | 85 | 150 | 2100 | 20 | Diesel engine driven hydraulic pump station | 5.8 | |
12.6 x 3.2 x 2.8 | 50 | 7.5 | 180 | 150 | 200 | 2500 | 20 | Diesel engine driven hydraulic pump station | 7.6 | |
9.5 x 3.0 x 2.8 | 30 | 5.4 | 100 | 80 | 150 | 2100 | 20 | Shore cable power delivery units | 5.0 | |
12.6 x 3.2 x 2.8 | 50 | 7.5 | 180 | 135 | 200 | 2500 | 20 | Shore cable power delivery units | 6.8 |
Note: Since our equipment is continuous improved, we reserve the right to modify model, parameter and specifications without prior notice.
Feature

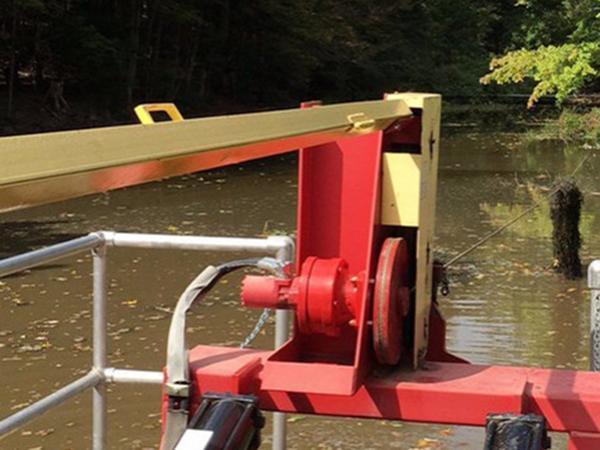

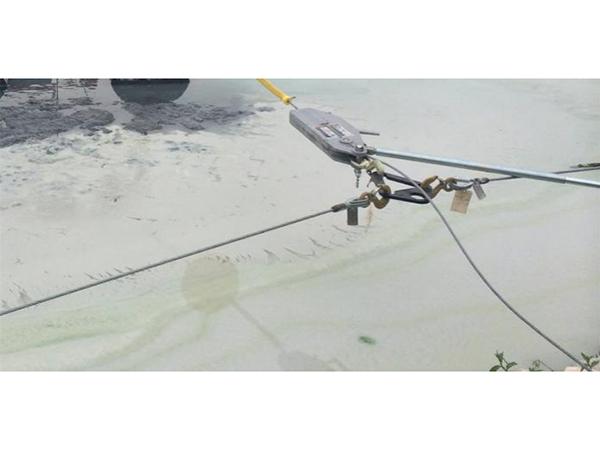

1. The auger suction dredger is equipped with mobile control unit, which is composed of leading sheave, winch and load steel wire rope.

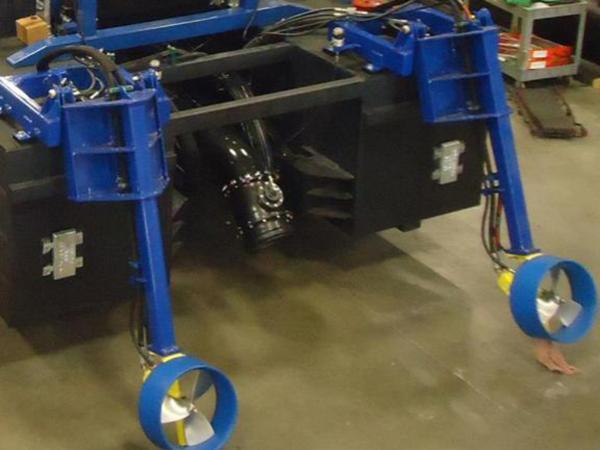

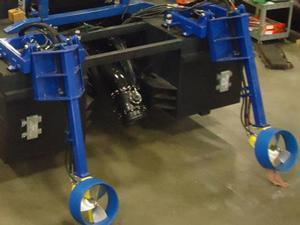

2. When working in outdoors, if the situation is not suitable for moving with steel wire rope, you can choose hydraulic propeller to realize moving.

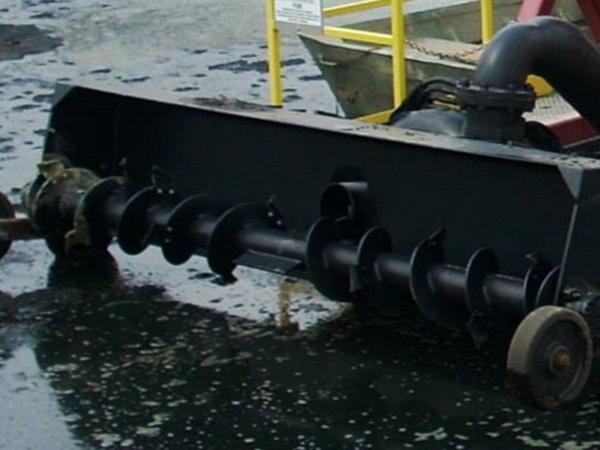

3. The sides of spiral cutting head is installed with supporting wheels, which can effectively prevent the bottom of water area from being damaged.

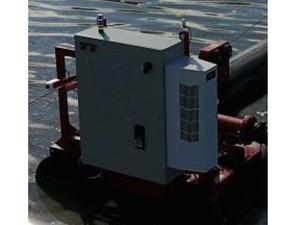

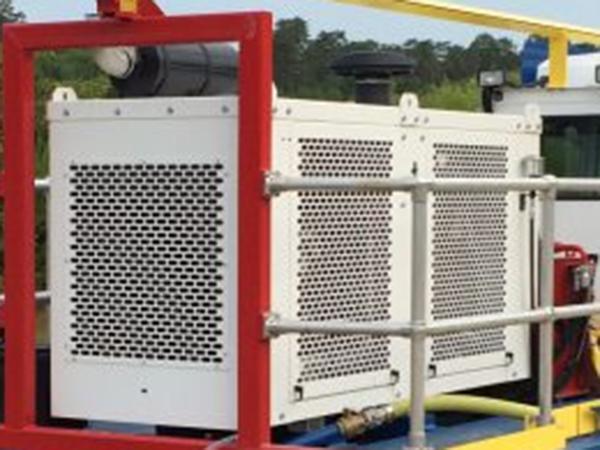

4. The power of the boat is provided by diesel engine driven hydraulic power unit or powered by shore power grid.
Our company is offering auger suction dredger and water dredging equipment to remove sand and mud in river, lake, pond, canal, etc. We have plenty production equipment to make good quality water cleaning and dredging equipment to meet customer demands.
